Cantilever Type Single Stranding Machine
  • FEATURES

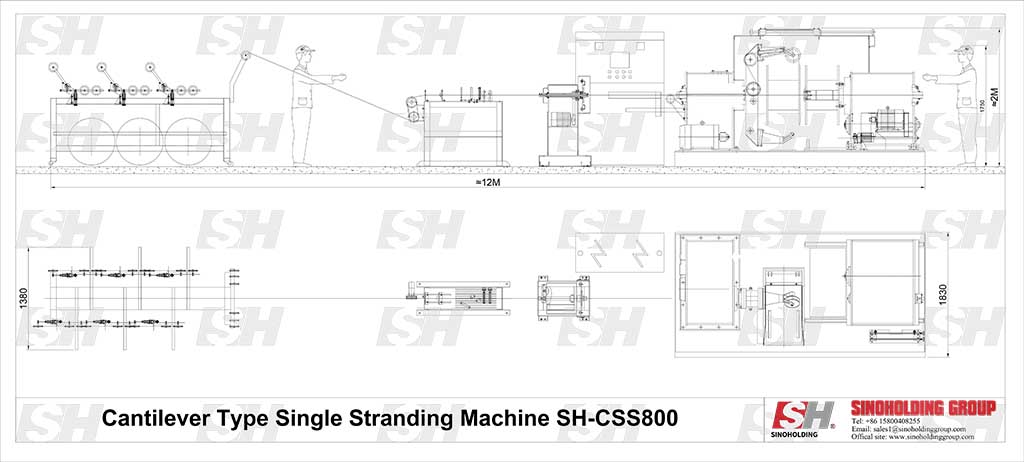

  • DIMENSIONAL SHEET
  • GALLERY & MULTIMEDIA

  • I. Usage

    Cantilever Type Single Stranding Machine is applied for stranding and laying-up all kinds of core wires of power cables, data cables, communication cables and other special cables, while finish the nonmetal wrapping at the same time.


    II. Equipment major components













    III. Technical parameter

    Model

    SH-CSS630

    SH-CSS800

    SH-CSS1000

    Pay-off bobbin size

    400-630

    400-630

    400-630

    Take-up bobbin size

    630

    800

    1000

    Applied wire diameter

    0.6-3.0MM

    0.6-3.0MM

    1.0-5.0MM

    Max.stranding outer diameter

    15MM

    20MM

    25MM

    Stranding pitch

    20-200MM

    30-300MM

    30-350MM

    Rotating speed

    1000RPM

    800RPM

    800RPM

    Stranding direction

    S/Z

    S/Z

    S/Z
