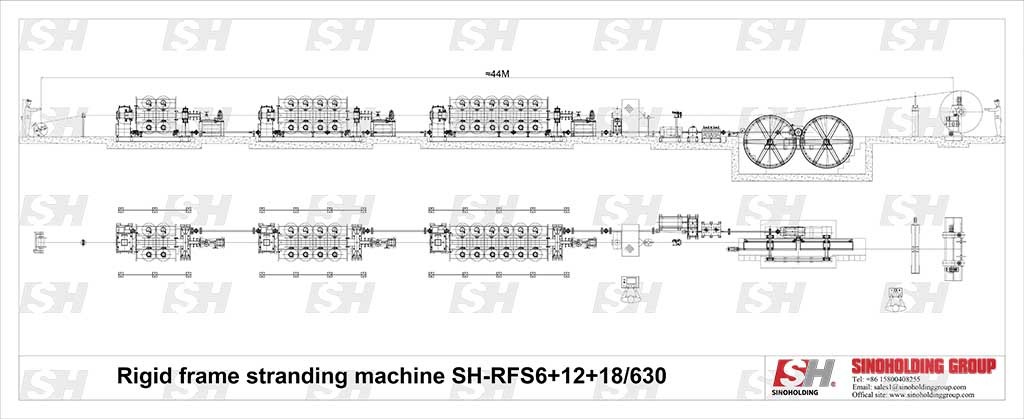

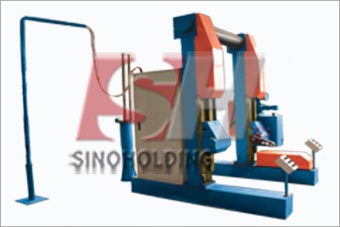

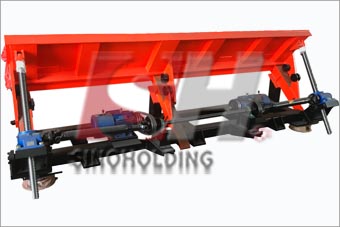

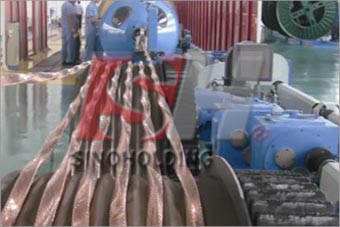

Rigid Frame Stranding Machine

FEATURES
DIMENSIONAL SHEET
GALLERY & MULTIMEDIA

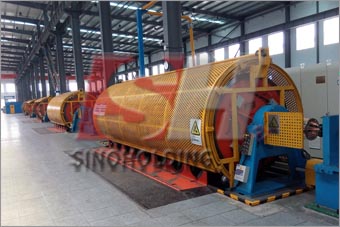

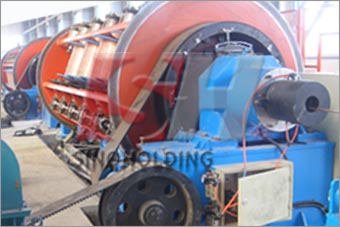

I. Introduction

Rigid frame stranding machine is applied for stranding multi-core copper wires, multi-core aluminum wires and ACSR wires, for producing power cable. The equipment adopts a main motor to uniformly drive through the transmission shaft to reduce the equipment cost, or adopts independent motors to drive each stranding cage and capstan wheels.The stranding pitch can be freely adjusted.

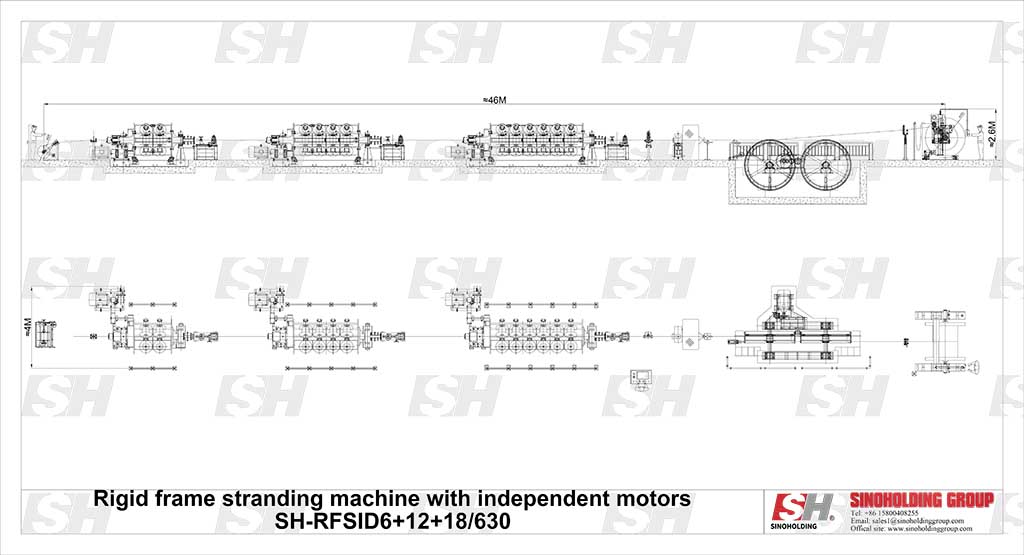

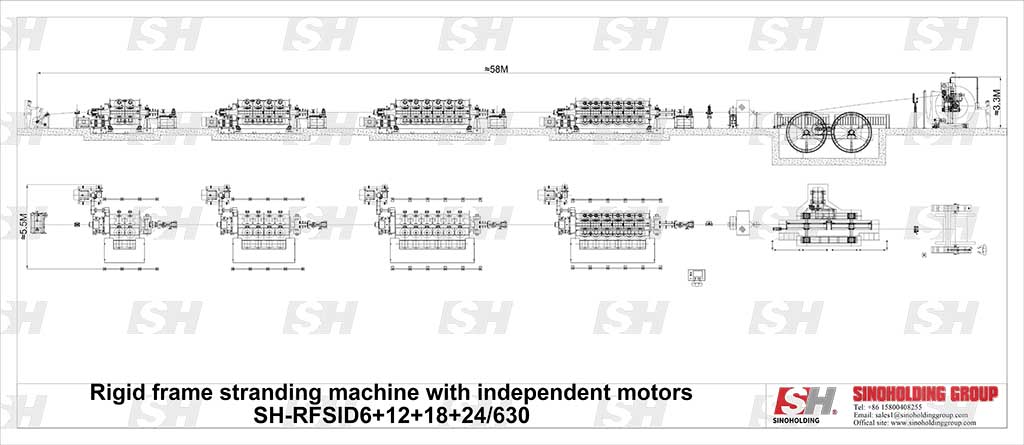

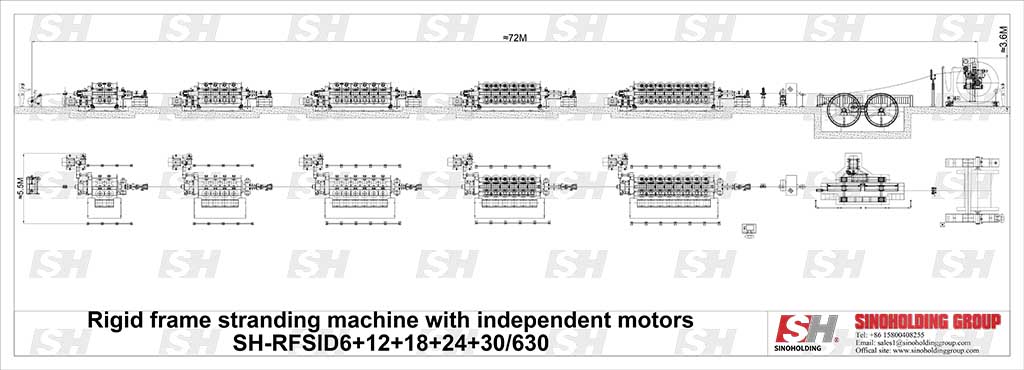

II.MainTechnical Parameters of Rigid frame strander with independent motors

Bobbin size		500	630
Stranding cage rotation speed	6 bobbins	171.3 r/min	144.9 r/min
	12 bobbins	171.3 r/min	144.9 r/min
	18 bobbins	153.4 r/min	130 r/min
	24 bobbins	136.8r/min	116.7 r/min
	30 bobbins		104.5r/min
Single wire diameter	Al	Φ1.8～Φ5.0 mm	Φ1.8～Φ5.0 mm
Single wire diameter	Cu	Φ1.5～Φ5.0 mm	Φ1.5～Φ5.0 mm

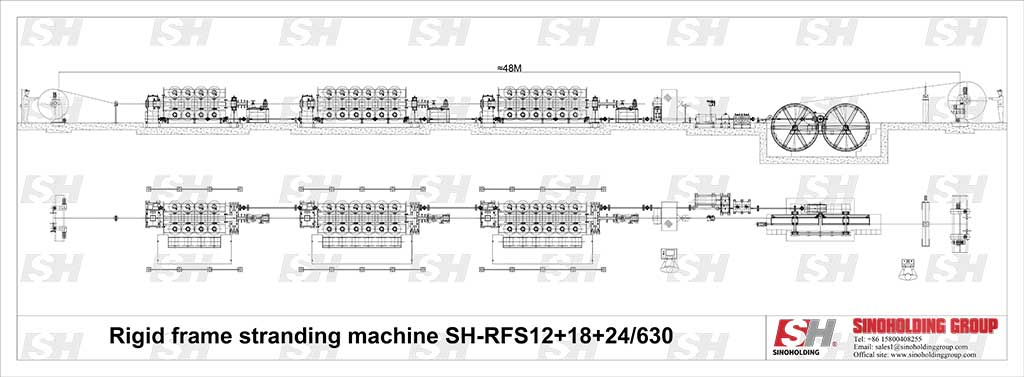

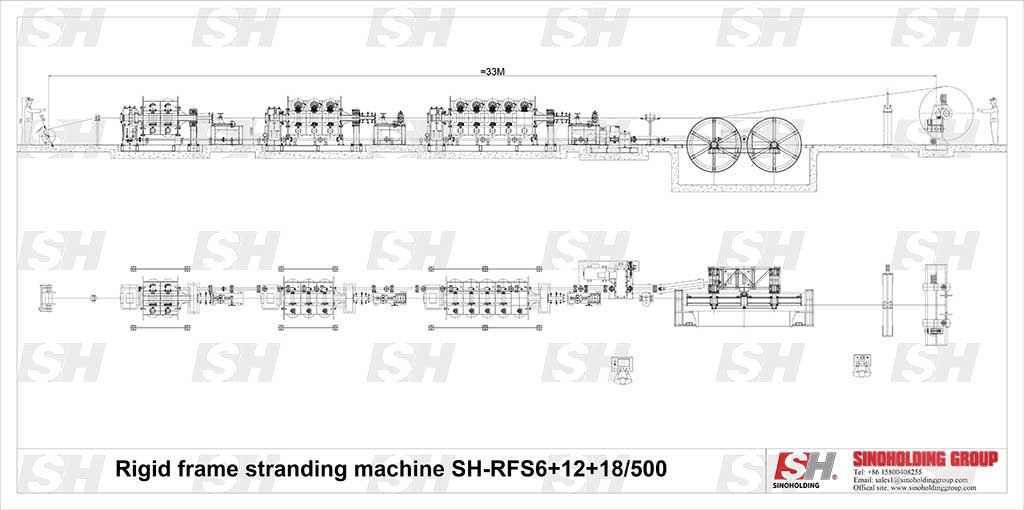

III. MainTechnical Parametersof Rigid frame strander

Bobbin size		500	630
Stranding cage rotation speed	6 Bobbins	180r/min	160r/min
	12 Bobbins	180r/min	160r/min
	18 Bobbins	160r/min	140r/min
	24 Bobbins	145r/min	125r/min
	30 Bobbins		110r/min
Single wire diameter	Al	Φ1.8～Φ5.0mm	Φ1.8～Φ5.0mm
Single wire diameter	Cu	Φ1.5～Φ5.0mm	Φ1.5～Φ5.0mm
