6-35 KV CCV Line
  • BRIEF INTRODUCTION
  • GALLERY
  • MULTIMEDIA

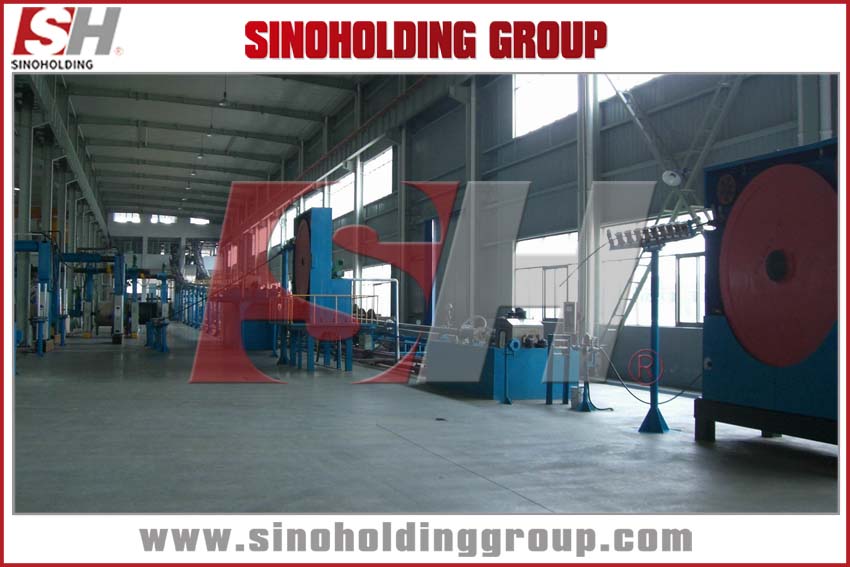

  • I. Introduction

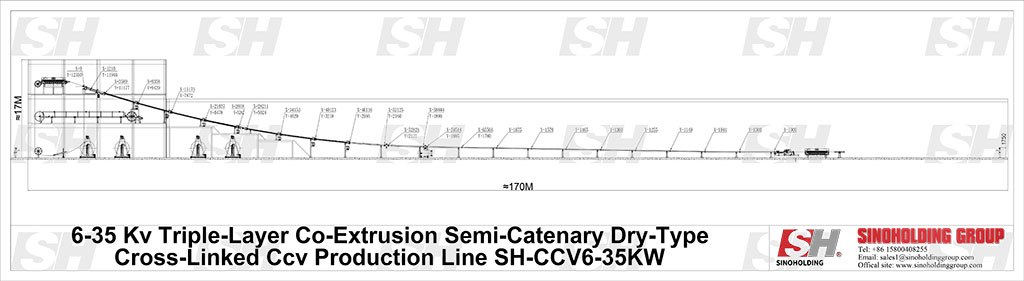

    6-35 Kv Three-Layer Co-Extruded Semi-Catenary Dry-Type Cross-Linked Ccv Production Line is mainly used to produce 6-35KV XLPE insulated cables, with copper or aluminium wire as core wire. This extrusion production line adopts semi-catenary structure, cross-linking and heating method, and nitrogen and cooling water cross-linking work.


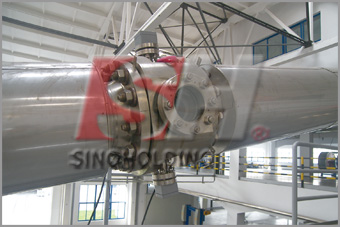

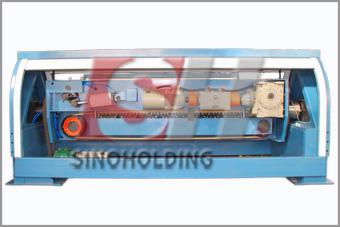

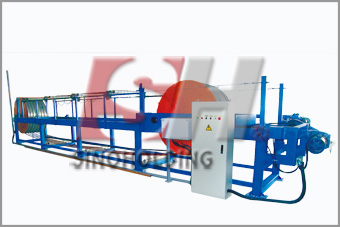

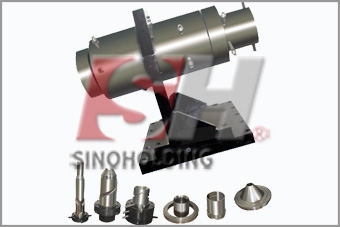

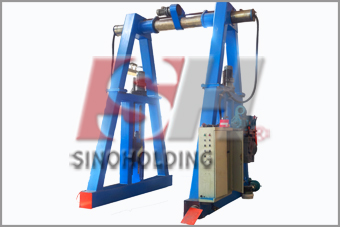

    II.Equipment major components





















    III. Techinical parameters

    Voltage classKV

    XLPE 6-35

    Conductor cross sectionmm2

    Cu 35-630

    Al 50-800

    Max. weight of cablekg/m

    10 kg/m

    Max. Diametermm

    Φ75

    Wall thicknessmm

    0.5-2.0 for Φ65 extruder inner layer

    2.5-10.5 for Φ150 extruder insulation layer

    0.5-2.0 for Φ90 extruder outer layer

    Length of Cross-linked closed zone (m)

    102

    Heating section length (m)

    42,6*6 sections

    Pre-cooling section length (m)

    12,6*2 sections

    Water cooling length (m)

    54,6*9 sections

    Area of main platformL*W

    24m*18m for one line

    30m*24m for two lines

    Height of main platformm

    ≥10

    Length of workshopm

    ≥135

    Nitrogen

    Pressure2.0-2.5 Mpa

    Purity99.5%

    Consumption0.4-1.8 m3/h

    Volume for nitrogen gas5m3

    Cooling water

    Pressure0.2-2 Mpa

    Consumption12.5 m3/h

    Compressed air

    Pressure0.6-0.8 Mpa

    Consumption0.8 m3/h

    Installed capacityKVA

    750
