Extrusion Sheathing Line
  • FEATURES
  • DIMENSIONAL SHEET
  • GALLERY & MULTIMEDIA

  • I. Introduction

    Extrusion Sheathing Line is used for extruding materials like PVC,PE, XLPE, HFFR onto core wires as the outer sheath.

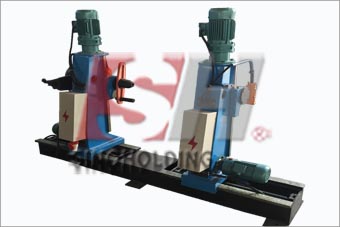

    II.Equipment major components






















    III. Techinical parameters

    Model

    SH-ES70

    SH-ES90

    SH-ES120

    SH-ES150

    Inlet diameter

    φ10-φ30mm

    φ15-φ50mm

    φ20-φ70mm

    φ45-φ100mm

    Outlet diameter

    φ12-φ35mm

    φ20-φ60mm

    φ25-φ80mm

    φ50-φ110mm

    Max. capacity

    180kg/h(PVC)

    280kg/h(PVC)

    380kg/h(PVC)

    600kg/h(PVC)

    Screw rotation speed

    5-100r/min

    90r/min

    0-60r/min

    0-55r/min

    Hauling speed

    3-120m/min

    0-80m/min

    3-60m/min

    3-50m/min

    Screw diameter

    φ70mm

    φ90mm

    φ120mm

    φ150mm

    Screw L/D

    25：1

    25：1

    25：1

    25：1

    Pay-off bobbin size (mm)

    PN800-PN1600

    PN1000-PN2000

    PN1250-PN2500

    PN2000-PN3150

    Take-up bobbin size (mm)

    PN800-PN1600

    PN1000-PN2000

    PN1250-PN2500

    PN1600-PN3150

    Installation power

    ≤97KW

    ≤185KW

    ≤260KW

    ≤355KW




    Related suggestion：35kv Medium Voltage Cable (Copper Core Wire)35kv Medium Voltage Cable (Copper Core Wire)
