Fine Wire Drawing Machine with Annealer
  • FEATURES

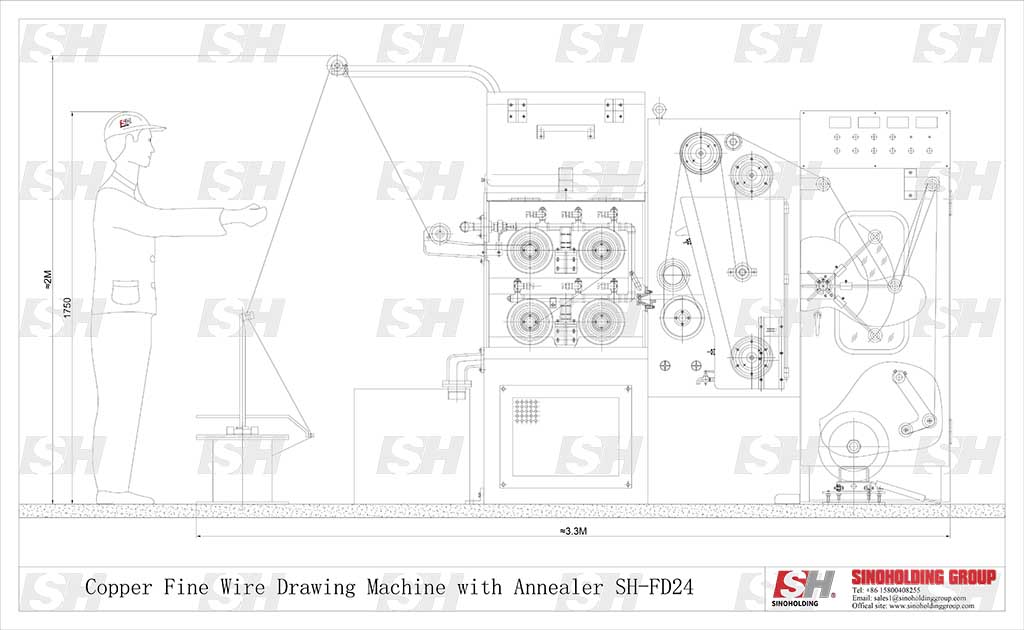

  • DIMENSIONAL SHEET
  • GALLERY & MULTIMEDIA

  • I. Introduction

    Copper Fine Wire Drawing Machine with Annealer is used for drawing and annealing copper wire from 0.8~1.8mm to 0.08~0.7mm.

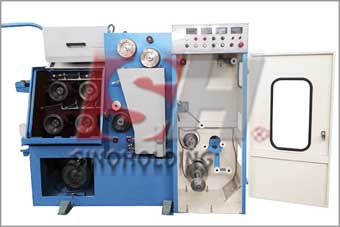

    II. Equipment major components












    III.Main technical parameters

    Model

    SH-FD14

    SH-FD22

    SH-FD24

    Intel wire diameter (mm)

    Φ0.8-1.6

    Φ0.8-1.2

    Φ0.5-1.0

    Outlet wire diameter (mm)

    Φ0.25-0.6

    Φ0.1-0.32

    Φ0.08-0.25

    Max. Linear speed (mm)

    1200

    2000

    2000

    Max.die No.

    14

    22

    24

    Main motor (KW)

    15

    11

    11

    Annealing power (KW)

    30

    16

    16

    Traversing type

    PND300

    PND300

    PND300

    Brake

    Electromagnetic pneumatic

    Electromagnetic pneumatic

    Electromagnetic pneumatic
