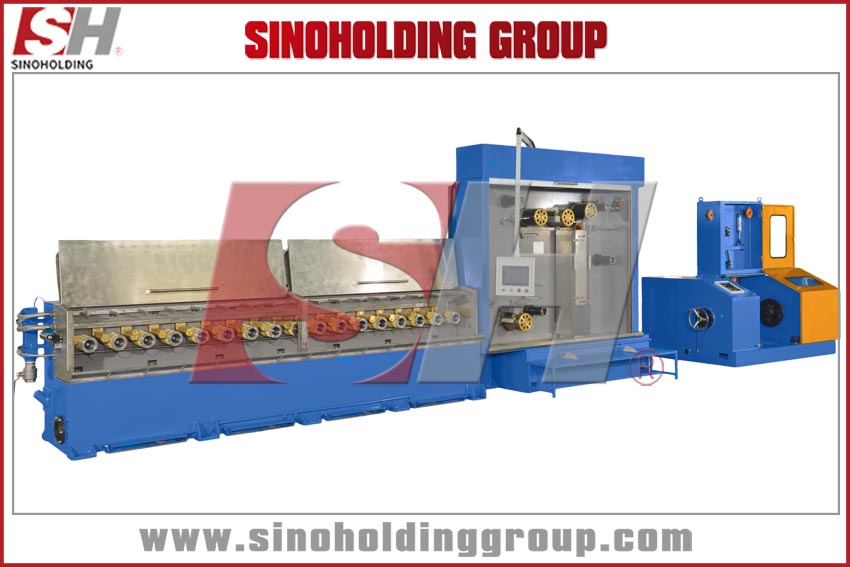

Multi-wire Drawing Machine with Annealer
  • FEATURES

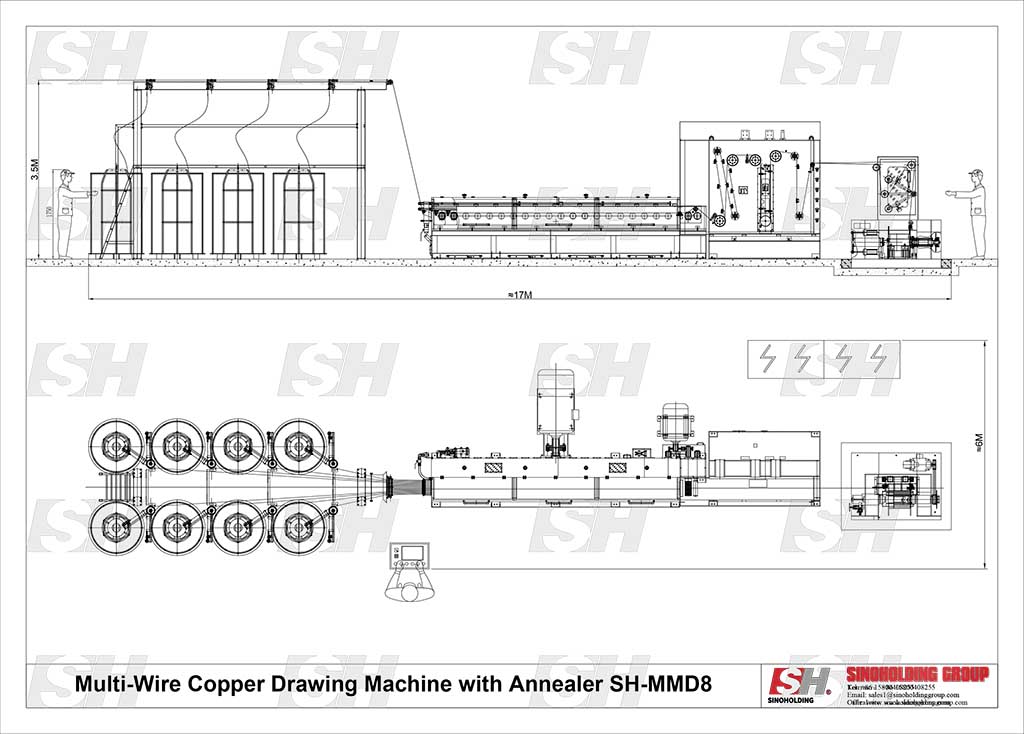

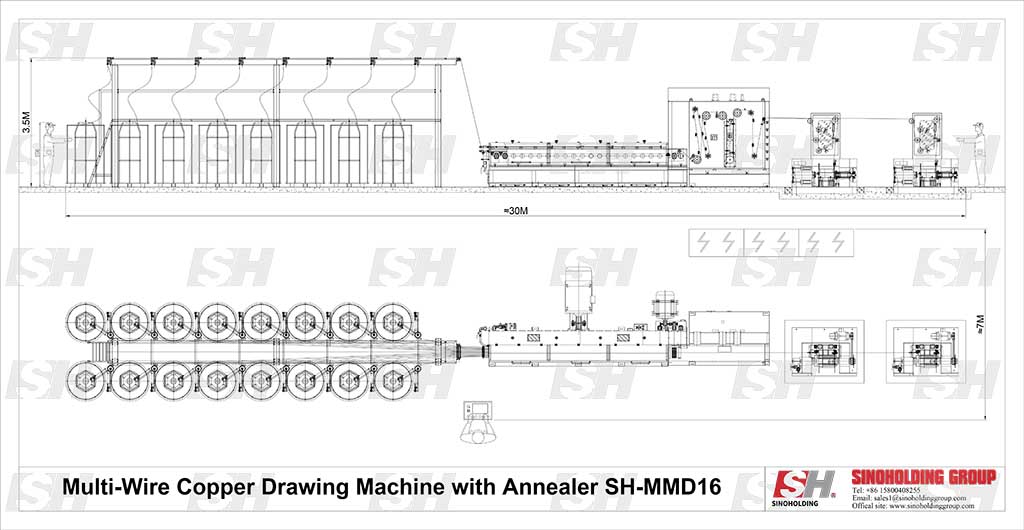

  • DIMENSIONAL SHEET
  • GALLERY & MULTIMEDIA

  • I. Introduction

    Multi-Wire Copper Drawing Machine with Annealer can be used to draw multiple copper wire at one time and with continuous annealing device for copper wire, after drawing all wire have same tolerance. The advanced design needs fewer production space and lowers the labor cost.

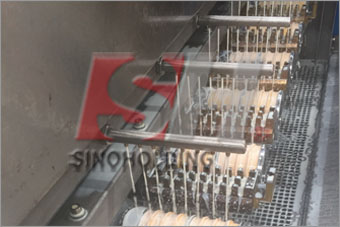

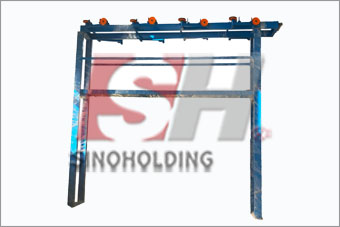

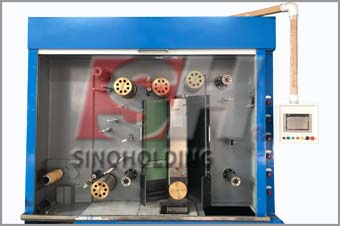

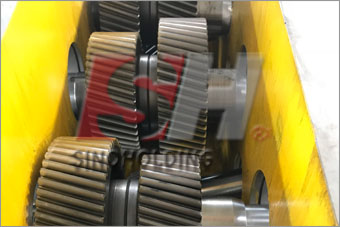

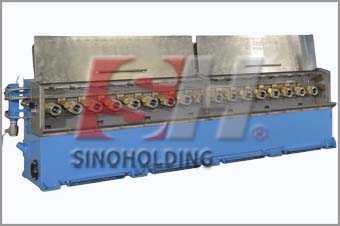

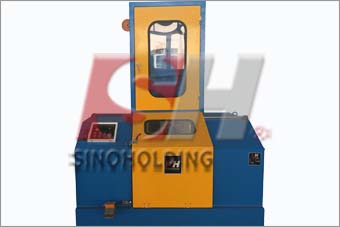

    II. Equipment major components





















    III. Main technical parameters


    Name

    Specification

    Model

    SH-MMD8

    SH-MMD16

    Max. Mechanical speed (m/min)

    1600

    1600

    Max. No. of wires

    8

    16

    Max. Inlet diameter(mm)

    2.0

    2.0

    Outlet diameter(mm)

    0.15-0.5

    0.15-0.5

    Drawing capstan diameter (mm)

    100

    100

    Haul-off capstan diameter (mm)

    100

    100

    Outer diameter of the die(mm)

    Φ25*12

    Φ25*12

    Mechanical elongation8-25%8-25%

    Drawing capstan motor power (KW)

    AC90

    AC160

    Haul-off capstan motor power (KW)

    AC30

    AC45

    Max. mechanical speed

    1800

    1800

    Wire diameter suitable for annealing (mm)

    0.15-0.5

    0.15-0.5

    Max. annealing power (KW)

    100

    230

    Max. annealing current (A)

    1500

    3000/4000





    Related suggestion： Copper Wires
