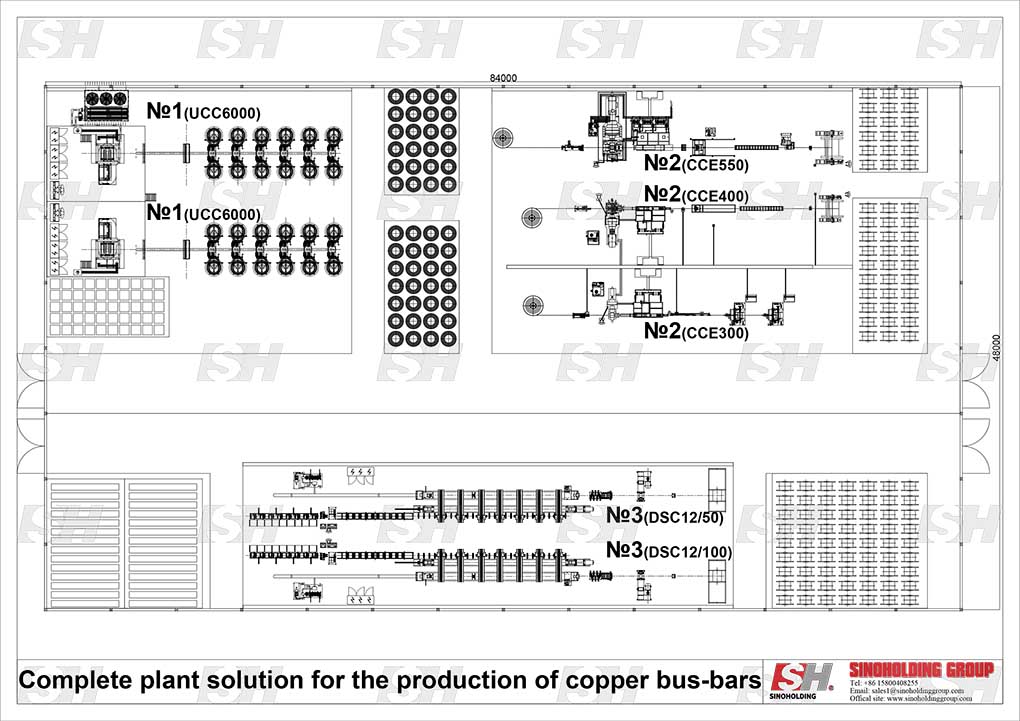

1 Complete plant solution for the production of copper bus-bars

NO.1 Upward Continuous Oxygen-free Copper Rod Casting Machine (SH-UCC6000*2 SETS)

Upward Continuous Oxygen-free Copper Rod Casting Machine (SH-UCC6000*2 SETS) uses scrap copper or electrolytic copper (Cathode) as raw materials to produce 12.5-25MM oxygen-free copper rods.

NO.2 Continuous Extrusion Machine (SH-CCE300, 400, 550)

Continuous Extrusion Machine (SH-CCE300, 400, 550) uses 12.5-25MM oxygen-free copper rods and extrudes up to 250MM soft copper bus-bars or copper strip materials.

NO.3 Fully Automatic Hydraulic Drawing & Tension Straightening & Cutting Machine (SH-DSC12/50,SH-DSC12/100)

Fully Automatic Hydraulic Drawing & Tension Straightening & Cutting Machine (12m50T*1 pc +12m100T*1 pc) draws the max. width of 250MM soft copper bus-bar extruded from the continuous extrusion machine into hard finished copper bus-bar. Also, this machine is used to draw annealed copper strip into a hard finished copper strip.
